Product Description

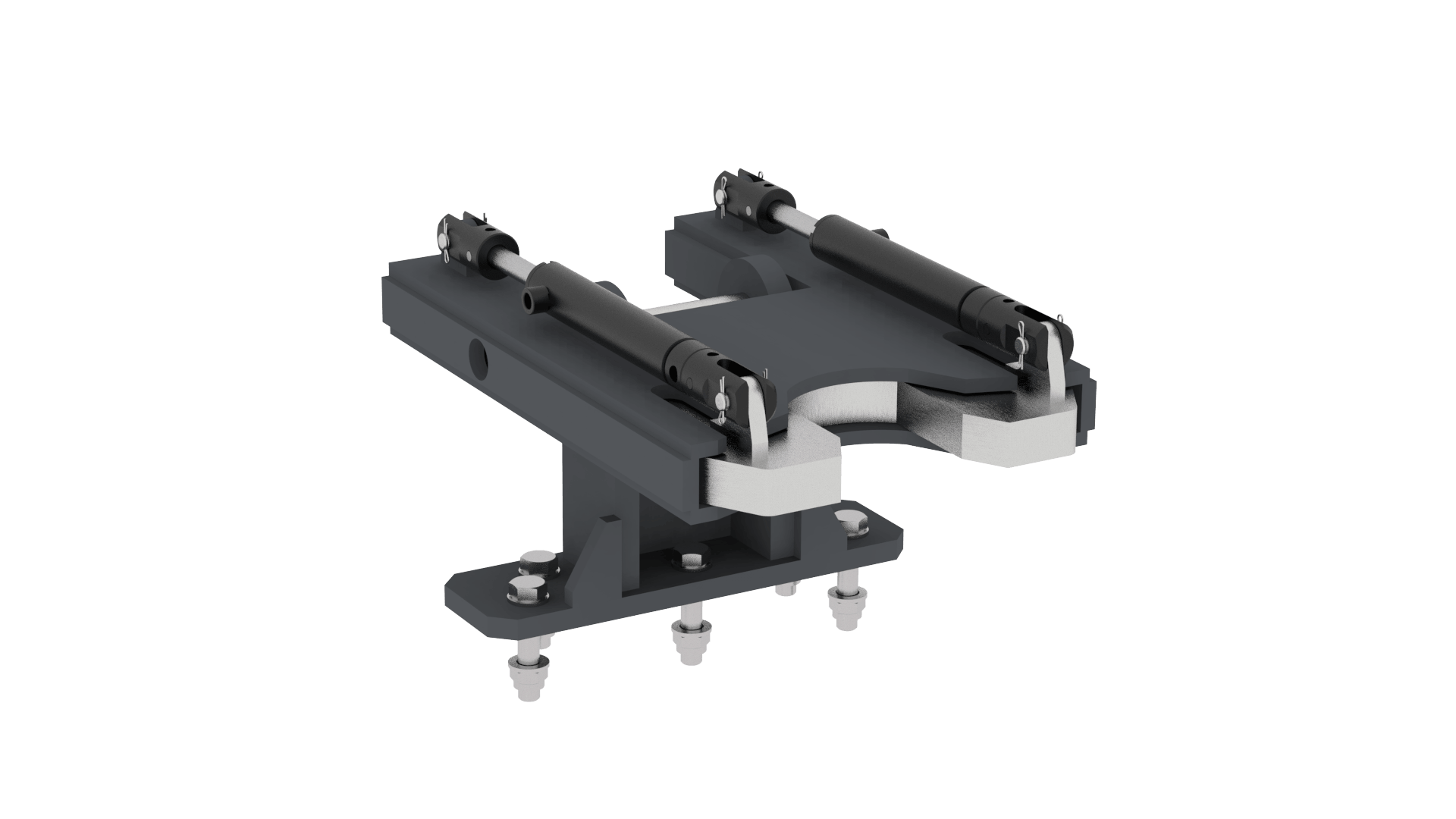

TOP SPANNER
Top Spanner Assembly is a “rod spanner” generally mounted in the mast that
is extended into position on the drill string to support and hold the drill string vertically and from rotation.
Features
- Maximum holding torque 50 kNm (37,000 lb/ft)
- Weight: 50 kg
- Suitable for M45 Rods
- Available with various spanner openings

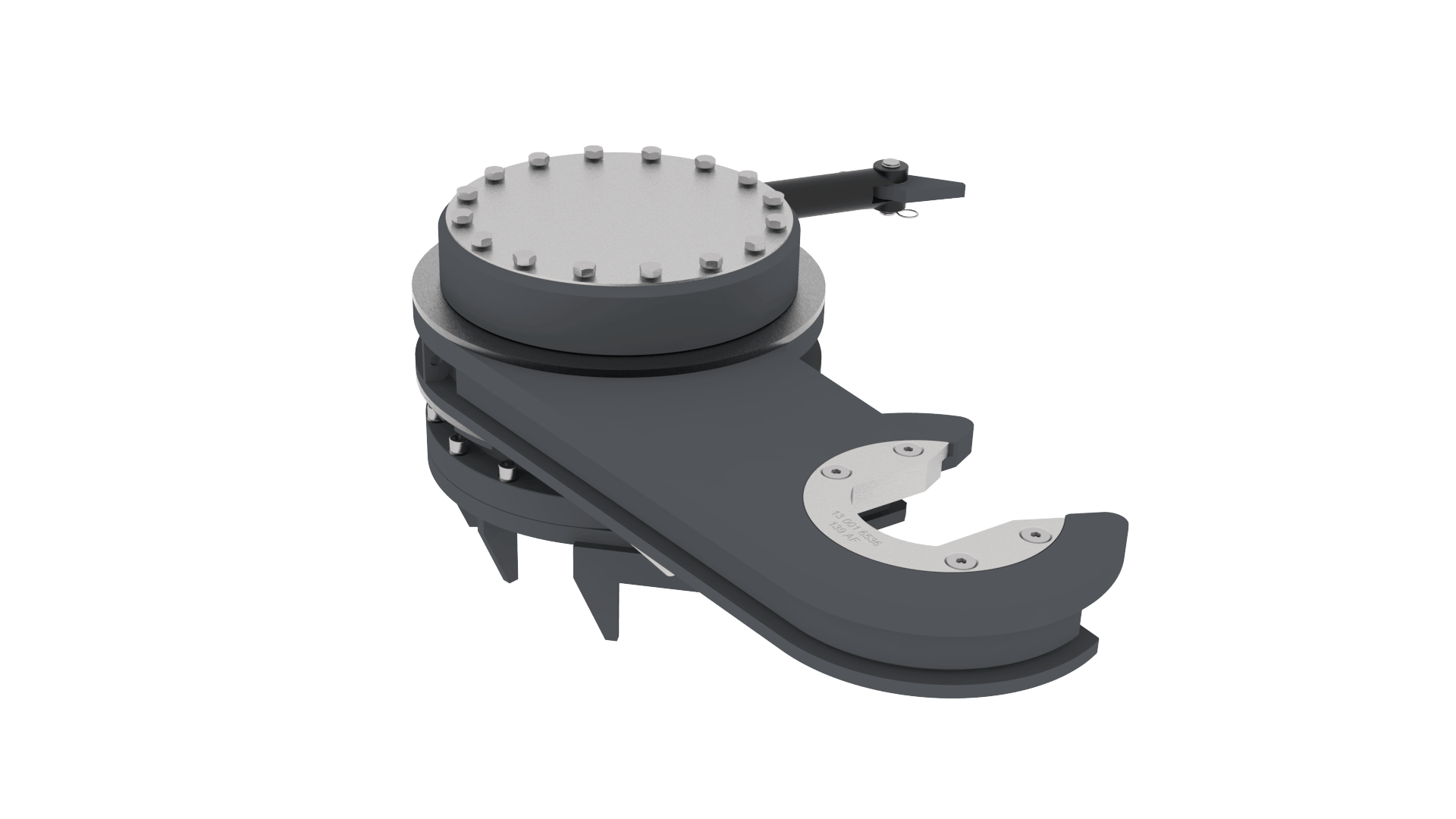

SWING IN SPANNER
The Spanner Assembly is a “rod spanner” mounted on a single arm that is rotated
into position on the drill string to support and hold the drill string vertically and from
rotation.
Features
- Maximum vertical load down 357kN (35T)
- Maximum vertical load up 26 kN (2.5T)
- Maximum holding torque 50 kNm (37,000 lb/ft)
- Suits 6 ¼” to 9 ½” rods with removable inserts
- Weight: 50 kg
