Product Description

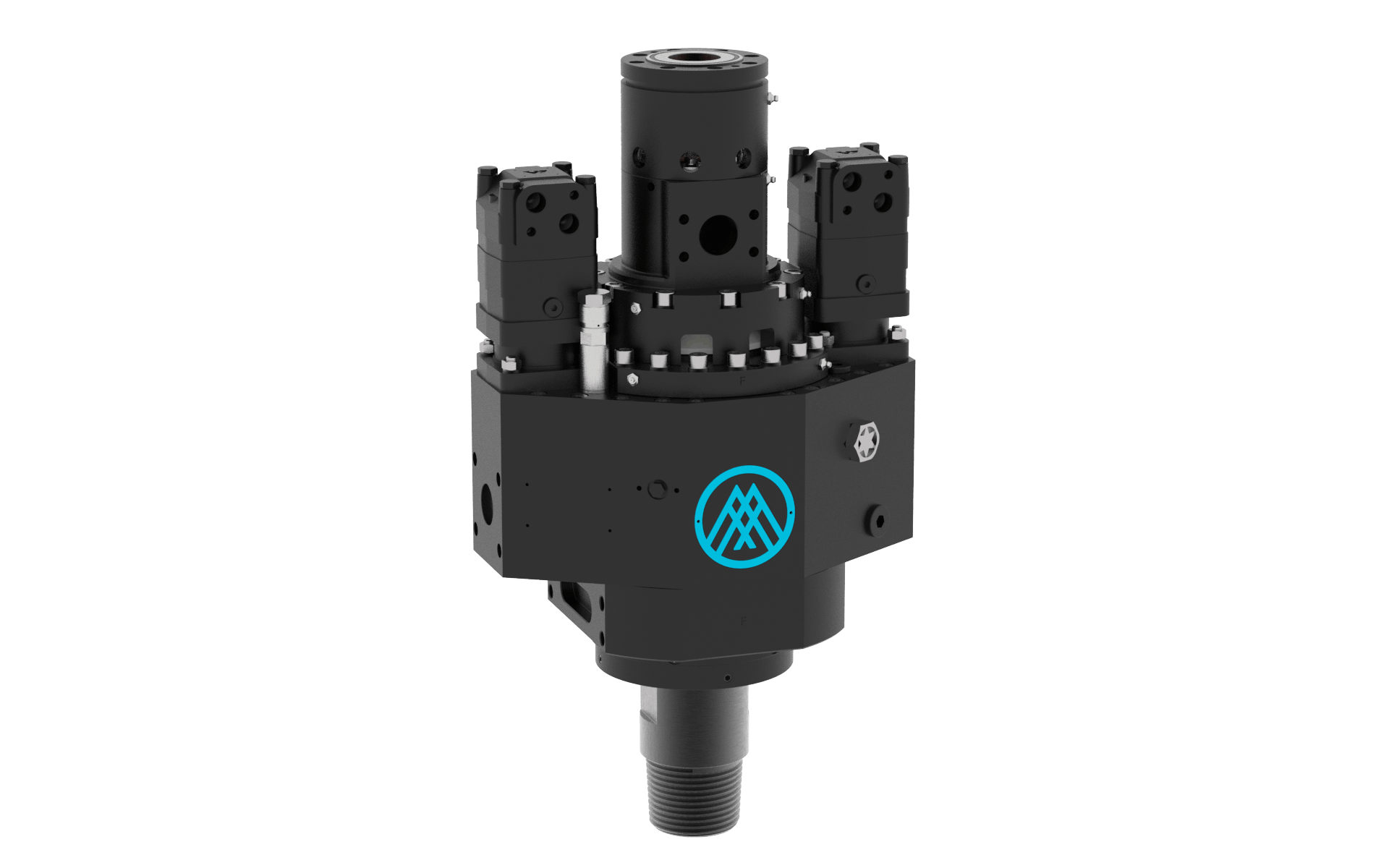

MRH32HD
The MRH 32 rotation head is a continuous-duty rotation head designed primarily for reverse circulation hammer drilling.
The head will provide a long operating life with correct use and regular maintenance.
- Compact designed for use on small to medium rigs
- High-Capacity Bearing
- Improved Sealing
- Oil filled with built-in magnetic drain plugs to aid condition monitoring practices
- Motor options 160 – 200cc (Standard RC) – 315 cc (Standard/ Conventional)
- Torque up to 4600 Nm – depending on motor option.
- Speeds up to 218 rpm – depending on motor options.
- Approximately 172 kg.
- Shaft options
-RC: 4-1/2″ Metzke Pin
-Conventional: 3-1/2″ API REG Box
